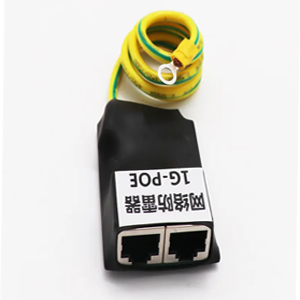

Lightning Protector For Mimosa Cambium Ubiquiti Energy Gigabit POE Ethernet Surge Protector

Product Detail

Lightning protection scheme: Both RJ45 ports are through, has no direction

Typical installation: Indoor (optional IP55)

Typical Packing: heat shrink

Data Throughput:10/100/100Base Ethernet

Supported PoE Types IEEE 802.3af Classes 0-4, IEEE 802.3at PoE +, Passive PoE

Maximum PoE Voltage: 66V

Maximum voltage Data: 66 volts

Dimensions 40 * 60 * 18MM

1-port 10/100 / 1000Base Ethernet POE lightning protection

The lightning protector is with protection of all four pairs of UTP - cable for 10/100 BASE and 1000 BASE ports. Supports all types of PoE.

Purpose of Lightning protection:

Lightning protection is designed to protect equipment, in particular copper ports of switches, cameras, WI-FI routers, with PoE support, from electrical interference, interference that occurs on the connected UTP cable as a result of electrical discharges, lightning, etc. Supports passive PoE when power is supplied to idle pairs 4,5 and 7,8; as well as active PoE, when power is supplied by data pairs. Standards IEEE 802.3af classes 0-4, IEEE 802.3at PoE +, Passive PoE.

Application area:

Lightning protection is effective when installed on copper ports of equipment with a cable length of more than 10 meters.

A typical installation: on camera, with or without power to WI-FI access point or router, with or without power to the access switch on the subscriber switch.

Specifications:

Maximum drain current = 10kA
